Turning Insert >CSVTC0640R

Turning Insert

CSVTC0640R EDP:266773

Product Information

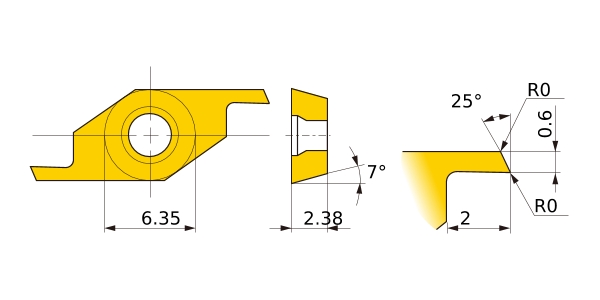

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15KZ
ANSI CSVTC0640R
Sales unit 5
Hand R
Stock
Unit of Length I
IC .25
AN 7°
PSIRR 25°
CDX .079
CW .024
S .094
APMX .059
REL 0
RER 0
Tolerance CW:±.002
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder
