Turning Insert >CTAT07080V5RR-B
CTAT07080V5RR-B EDP:267320
The actual product may differ from the displayed image.

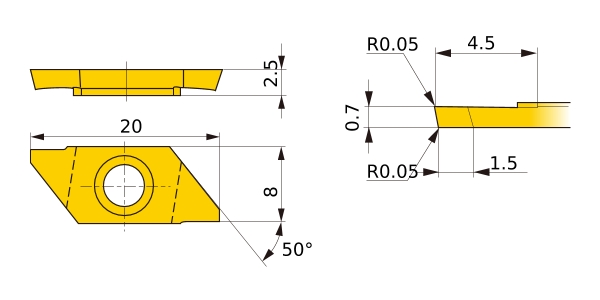

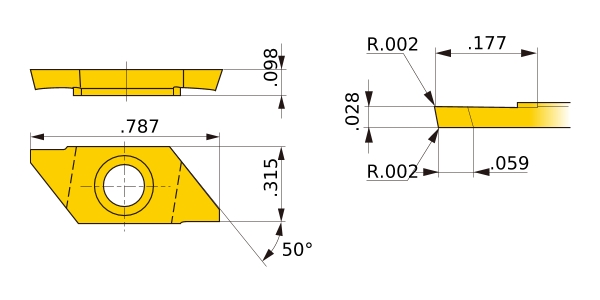

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | CTAT07080V5RR-B |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | M |
| CUTDIA | 8 |
| B9 | 16° |
| EPSR | 50° |
| LBB | 1.5 |
| CDX | 4.5 |
| L | 20 |
| W1 | 8 |
| CW | 0.7 |
| S | 2.5 |
| REL | 0.05 |
| RER | 0.05 |
| Breaker | B |
| Tolerance | CW:±0.05 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Grooving Others
