Turning Insert >CTAT10110V5RL-B

Turning Insert

CTAT10110V5RL-B EDP:267346

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
Sales unit 5
Hand L

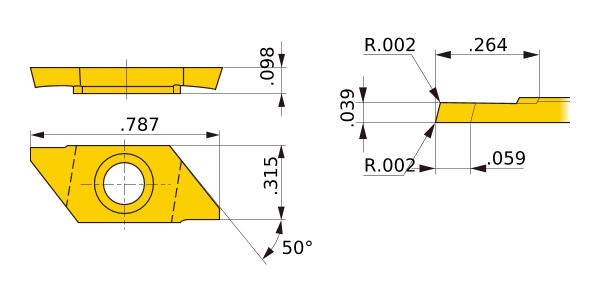

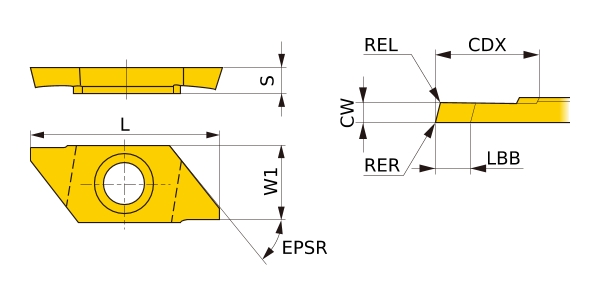

Unit of Length I
B9 16°
EPSR 50°
LBB .059
CDX .264
L .787
W1 .315
CW .039
S .098
REL .002
RER .002
Breaker B
Tolerance CW:±.002


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
