Turning Insert >CTAT2012000LL
CTAT2012000LL EDP:267514
The actual product may differ from the displayed image.

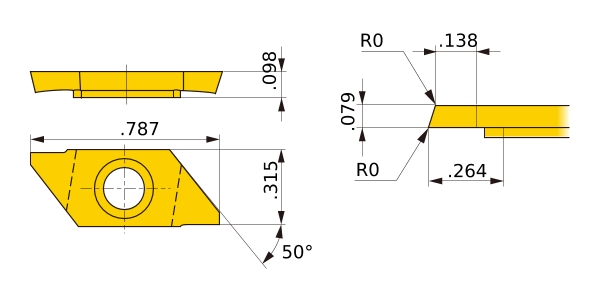

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | CTAT2012000LL |
| Sales unit | 5 |
| Hand | L |
| Stock |
|
| Unit of Length | M |
| CUTDIA | 12 |
| B9 | 20° |
| EPSR | 50° |
| LBB | 3.5 |
| CDX | 6.7 |
| L | 20 |
| W1 | 8 |
| CW | 2 |
| S | 2.5 |
| REL | 0 |
| RER | 0 |
| Tolerance | CW:±0.05 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
