Turning Insert >CTBT20160V5LN-B
CTBT20160V5LN-B EDP:267629
The actual product may differ from the displayed image.
For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | CTBT20160V5LN-B |
| Sales unit | 5 |
| Hand | N |
| Stock |
|
| Unit of Length | I |

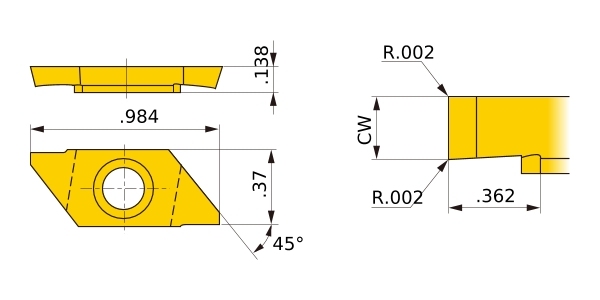

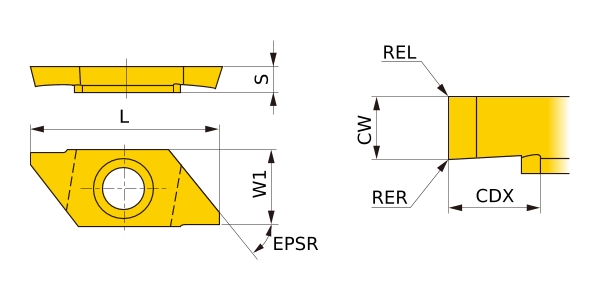

| CUTDIA | .63 |
| B9 | 0° |
| EPSR | 45° |
| CDX | .362 |
| L | .984 |
| W1 | .37 |
| CW | .079 |
| S | .138 |
| REL | .002 |
| RER | .002 |
| Breaker | B |
| Tolerance | CW:±.002 |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | MS6015 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
