Turning Insert >GTAT0431200R-VT

Turning Insert

GTAT0431200R-VT EDP:269131

Product Information

The actual product may differ from the displayed image.

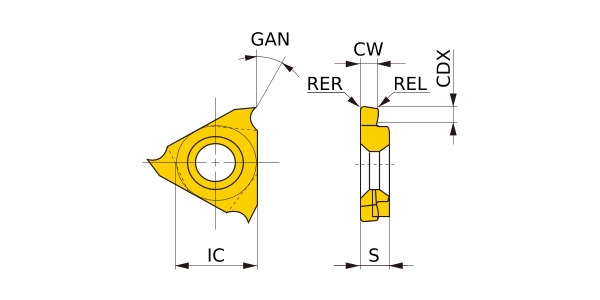

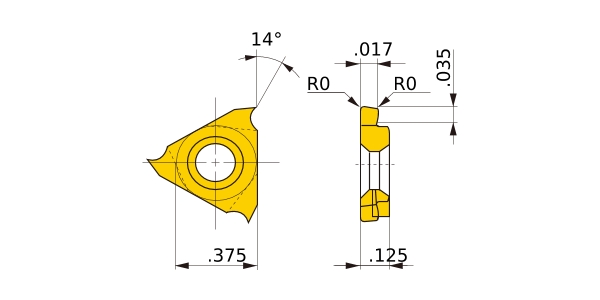

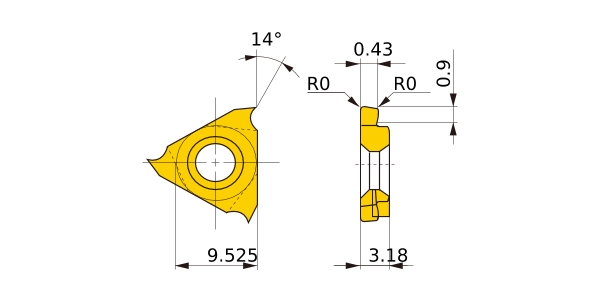

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15KZ
ANSI GTAT0431200R-VT
Sales unit 5
Hand R
Stock
Unit of Length M
IC 9.525
GAN 14°
CDX 0.9
CW 0.43
S 3.18
REL 0
RER 0
Breaker VT
Tolerance CW:±0.025
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Grooving Others
