Turning Insert >GTAT1002001L-E

Turning Insert

GTAT1002001L-E EDP:269350

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI GTAT1002001L-E
Sales unit 5
Hand L
Stock
Unit of Length M

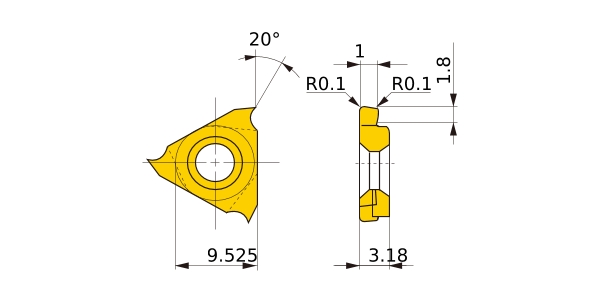

IC 9.525
GAN 20°
CDX 1.8
CW 1
S 3.18
REL 0.1
RER 0.1
Breaker E
Tolerance CW:±0.025
