Turning Insert >GTBT2003001R-E

Turning Insert

GTBT2003001R-E EDP:269683

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

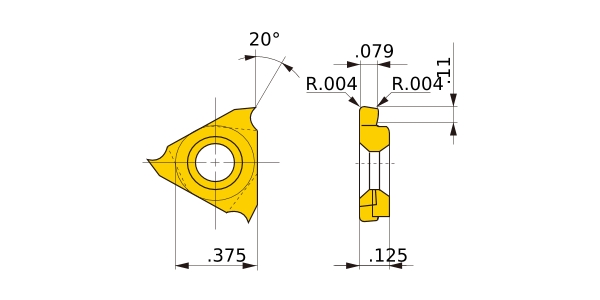

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI GTBT2003001R-E
Sales unit 5
Hand R
Stock
Unit of Length I
IC .375
GAN 20°
CDX .11
CW .079
S .125
REL .004
RER .004
Breaker E
Tolerance CW:±.001
Classification of Grades
Coated・Carbide MS7025
