Turning Insert >MLG1415L

Turning Insert

MLG1415L EDP:114238

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UTi20T
ANSI MLG1415L
Sales unit 10
Hand L
Stock
Unit of Length M
GAN 20°
RAL 2°
RAR 2°
CDX 2

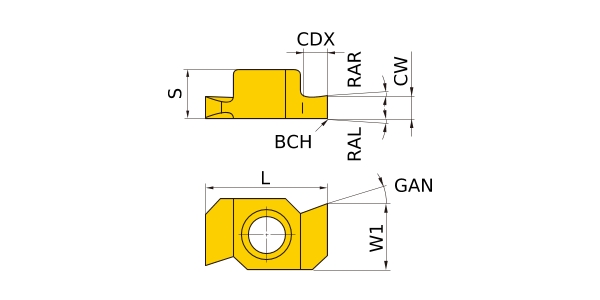

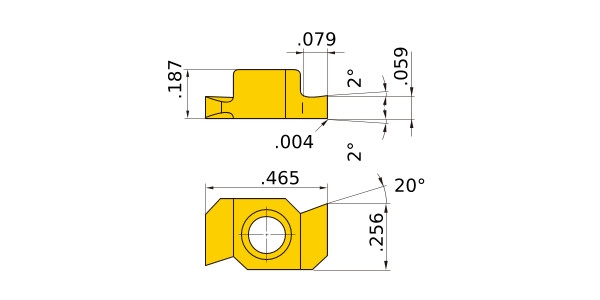

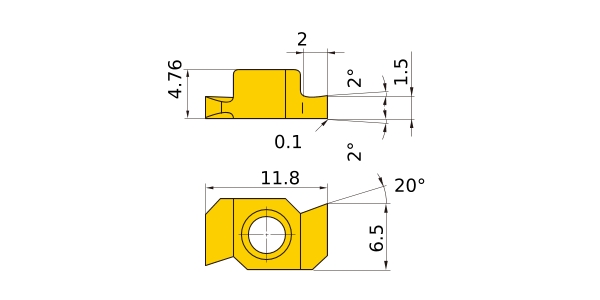

L 11.8
W1 6.5
CW 1.5
S 4.76
BCH 0.1
Tolerance CW:±0.025
