Turning Insert >SBAT308000L
SBAT308000L EDP:269835
The actual product may differ from the displayed image.

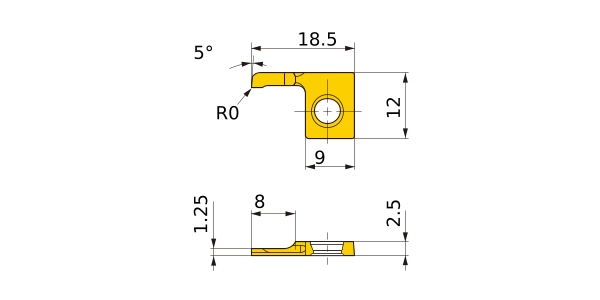

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15KZ |
| ANSI | SBAT308000L |
| Sales unit | 5 |
| Hand | L |
| Stock |
|
| Unit of Length | M |
| DMIN | 3 |
| B9 | 95° |
| PSIRL | 5° |
| CDX | 8 |
| L | 18.5 |
| W1 | 12 |
| CW | 1.25 |
| S10 | 9 |
| S | 2.5 |
| RER | 0 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
