Turning Insert >MMT11IR320UN

Turning Insert

MMT11IR320UN EDP:315820

Product Information

The actual product may differ from the displayed image.

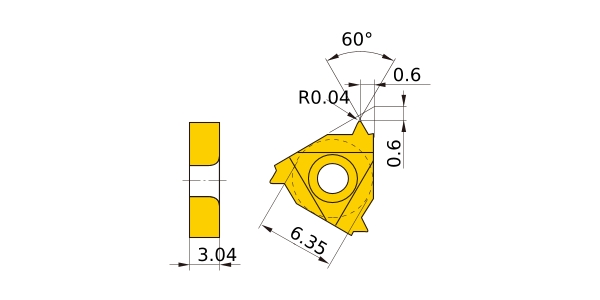

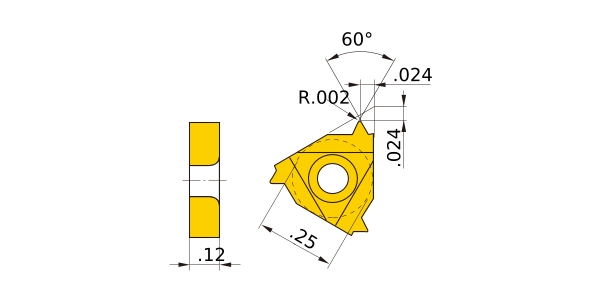

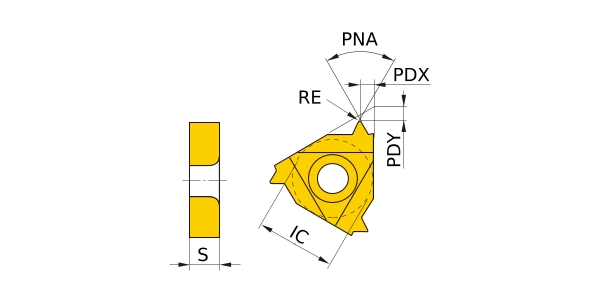

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10MF
ANSI MMT11IR320UN
Sales unit 5
Hand R
Stock
Unit of Length M
IC 6.35
PNA 60°
CW 32
S 3.04
PDX 0.6
PDY 0.6
RE 0.04
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
