Turning Insert >MMT16ER080ACME

Turning Insert

MMT16ER080ACME EDP:315871

Product Information

The actual product may differ from the displayed image.

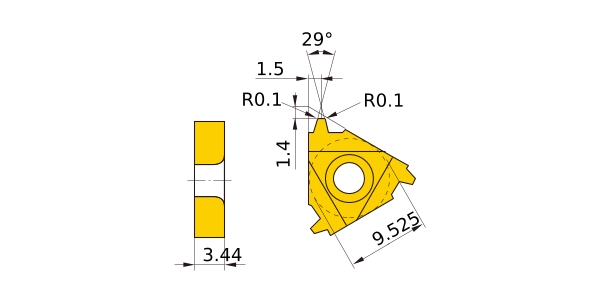

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10MF
ANSI MMT16ER080ACME
Sales unit 5
Hand R
Stock
Unit of Length I
IC .375
PNA 29°
CW .315
S .135
PDX .059
PDY .055
REL .004
RER .004
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Threading Holder
