Turning Insert >MMT16ER140NPT

Turning Insert

MMT16ER140NPT EDP:319521

Product Information

The actual product may differ from the displayed image.

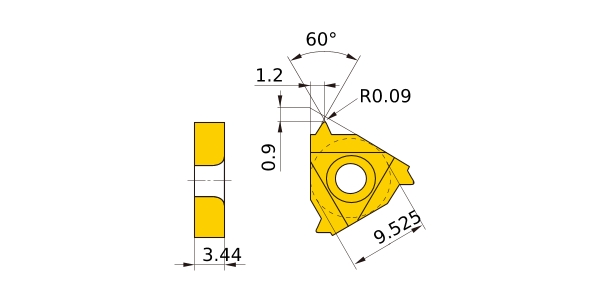

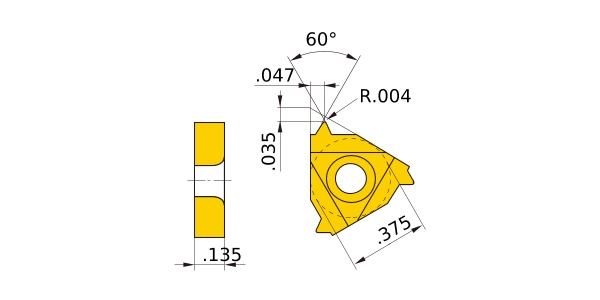

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10MF
ANSI MMT16ER140NPT
Sales unit 5
Hand R
Stock
Unit of Length M

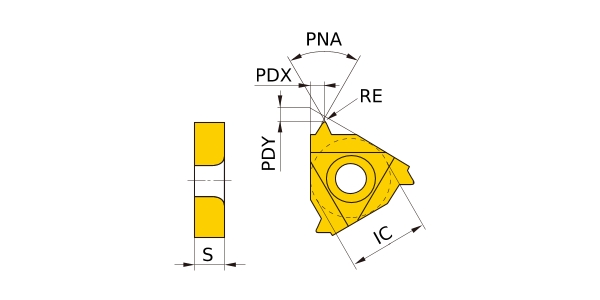

IC 9.525
PNA 60°
CW 14
S 3.44
PDX 1.2
PDY 0.9
RE 0.09
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
