Turning Insert >MMT16IR120UN
MMT16IR120UN EDP:262191
The actual product may differ from the displayed image.

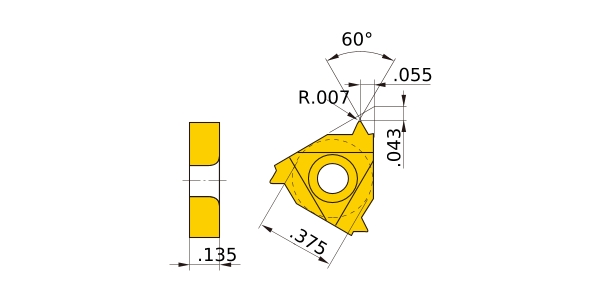

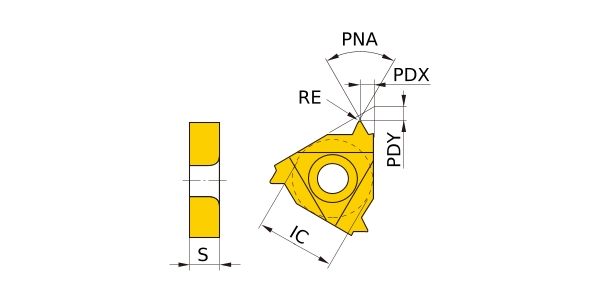

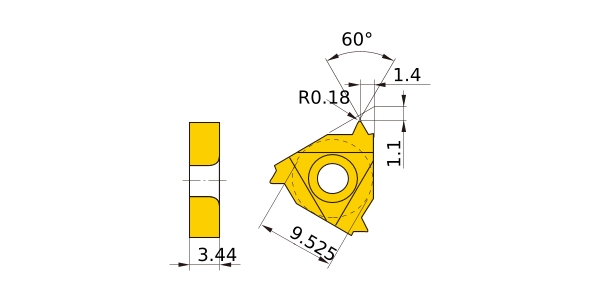

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP10MF |
| ANSI | MMT16IR120UN |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | I |
| IC | .375 |
| PNA | 60° |
| CW | .472 |
| S | .135 |
| PDX | .055 |
| PDY | .043 |
| RE | .007 |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | VP15TF |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Threading Holder
