Turning Insert >MMT22ER060ACME

Turning Insert

MMT22ER060ACME EDP:319142

Product Information

The actual product may differ from the displayed image.

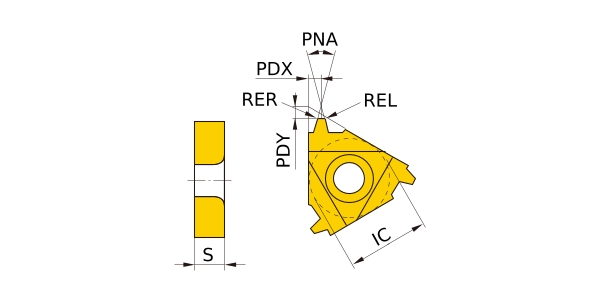

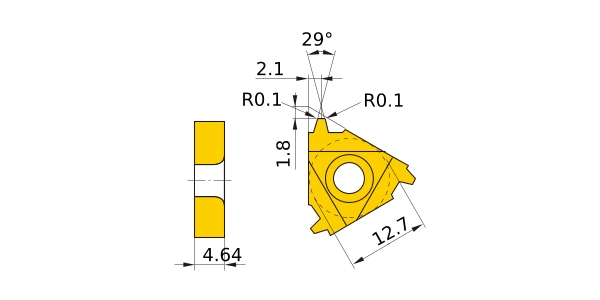

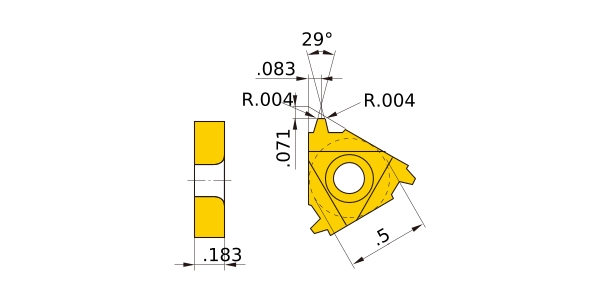

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10MF
ANSI MMT22ER060ACME
Sales unit 5
Hand R
Stock
Unit of Length M
IC 12.7
PNA 29°
CW 6
S 4.64
PDX 2.1
PDY 1.8
REL 0.1
RER 0.1
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
