Turning Insert >MMT16ER120UN-S

Turning Insert

MMT16ER120UN-S EDP:369810

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI MMT16ER120UN-S
Sales unit 5
Hand R
Stock
Unit of Length I

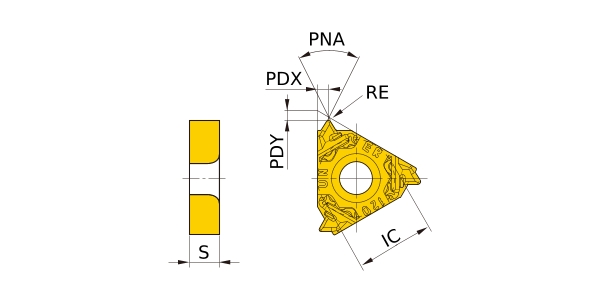

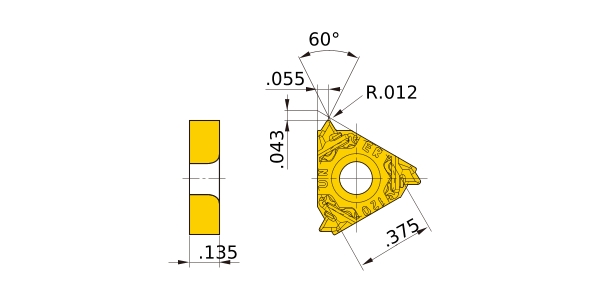

IC .375
PNA 60°
CW .472
S .135
PDX .055
PDY .043
RE .012
Classification of Grades
