Turning Insert >MCLNR-124B

Turning Insert

MCLNR-124B EDP:102799

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI MCLNR124B
Sales unit 1
Hand R
Stock

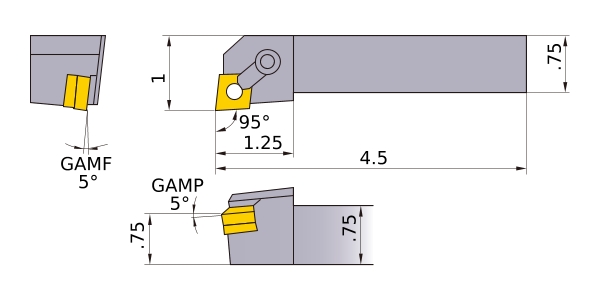

Unit of Length I
B .0295
KAPR 95°
LF .1772
LH .0492
WF .0394
H .0295
HF .0295
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__43
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder

  • Internal Holder

  • Spare Parts
