Turning Insert >WNMG322MS

Turning Insert

WNMG322MS EDP:112058

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade US735
Order Number WNMG060308-MS
Sales unit 10
Hand N
Stock
Unit of Length I
D1 .15
IC .375
EPSR 80°
S .125
RE .031
Breaker MS

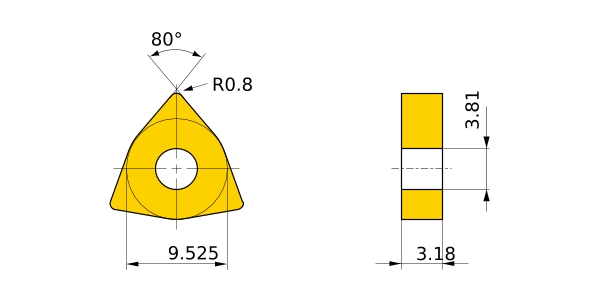

2D Model (DXF)
CAD data name Download
WN060308N
