Turning Insert >VBGT330.2FJ

Turning Insert

VBGT330.2FJ EDP:256233

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10RT
Order Number VBGT160401-FJ
Sales unit 10
Hand N
Stock
Unit of Length I

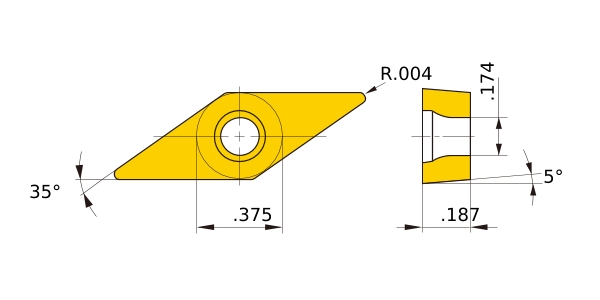

D1 .174
IC .375
EPSR 35°
AN 5°
S .187
RE .004
Breaker FJ
