Turning Insert >VBGT1604V5-FJ

Turning Insert

VBGT1604V5-FJ EDP:256292

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10RT
ANSI VBGT33V5FJ
Sales unit 10
Hand N
Stock
Unit of Length M

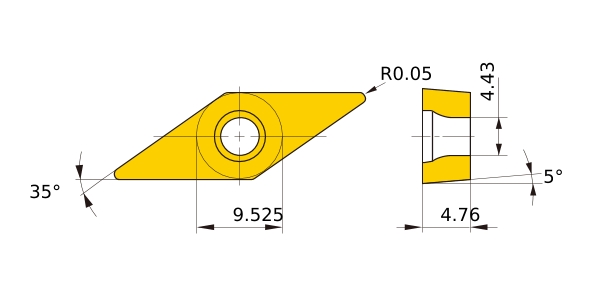

D1 4.43
IC 9.525
EPSR 35°
AN 5°
S 4.76
RE 0.05
Breaker FJ
2D Model (DXF)
CAD data name Download
VB1604V5N
CAD
