Turning Insert >WCGT0402V5-FJ-P

Turning Insert

WCGT0402V5-FJ-P EDP:256381

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade RT9005
ANSI WCGT21.5V5FJ-P
Sales unit 10
Hand N
Stock
Unit of Length M

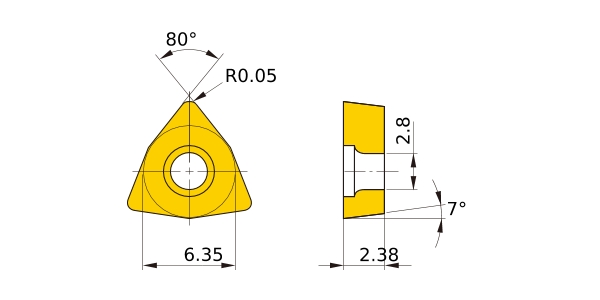

D1 2.8
IC 6.35
EPSR 80°
AN 7°
S 2.38
RE 0.05
Breaker FJ-P
2D Model (DXF)
CAD data name Download
WC0402V5N
CAD
