Turning Insert >NP-DNGA150608GAWS2JR

Turning Insert

NP-DNGA150608GAWS2JR EDP:10525050

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8120
ANSI NP-DNGA442-GAWS2JR
Sales unit 1
Hand R
Stock
Unit of Length M

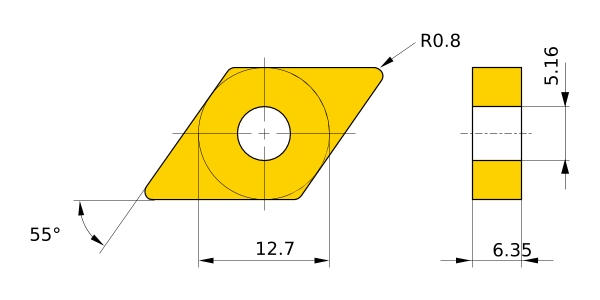

D1 5.16
IC 12.7
EPSR 55°
LE 1.7
S 6.35
RE 0.8
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8220
CBN・CBN MB8120
2D Model (DXF)
CAD data name Download
DN150608R
CAD
