Turning Insert >NP-VBGW110304GA2

Turning Insert

NP-VBGW110304GA2 EDP:10518366

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8120
ANSI NP-VBGW221-GA2
Sales unit 1
Hand N
Stock
Unit of Length M

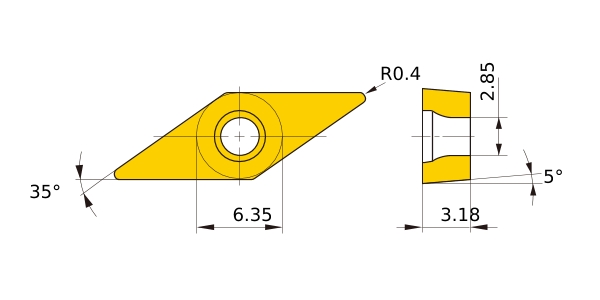

D1 2.85
IC 6.35
EPSR 35°
AN 5°
LE 2.5
S 3.18
RE 0.4
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8130
CBN・Coated CBN BC8220
CBN・CBN MB8120
CBN・CBN MB8220
2D Model (DXF)
CAD data name Download
VB110304N
CAD
