Turning Insert >NP-CCGW04T004GS

Turning Insert

NP-CCGW04T004GS EDP:10551929

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8105
ANSI NP-CCGW04T004GS
Sales unit 1
Hand N
Stock
Unit of Length I

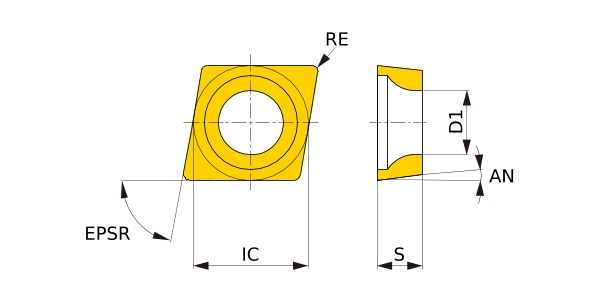

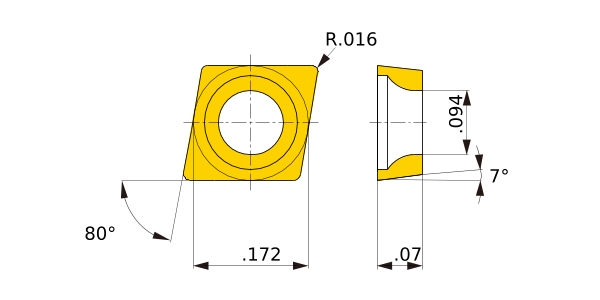

D1 .094
IC .172
EPSR 80°
AN 7°
LE .055
S .07
RE .016
Breaker flat_top
2D Model (DXF)
CAD data name Download
CCGW04T004N
CAD
