Turning Insert >NP-DCGW21.52-TA2

Turning Insert

NP-DCGW21.52-TA2 EDP:10538951

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8130
Order Number NP-DCGW070208TA2
Sales unit 1
Hand N
Stock
Unit of Length I

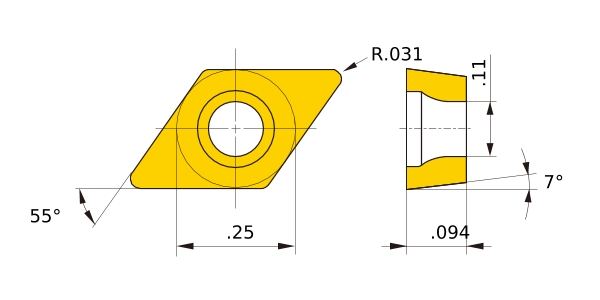

D1 .11
IC .25
EPSR 55°
AN 7°
LE .079
S .094
RE .031
Breaker flat_top
Classification of Grades
CBN・CBN MB8130
2D Model (DXF)
CAD data name Download
DC070208N
CAD
