Turning Insert >VCGT2.520.2MLS-P

Turning Insert

VCGT2.520.2MLS-P EDP:10576014

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MT9005
Order Number VCGT130301M-LS-P
Sales unit 10
Hand N
Stock
Unit of Length I

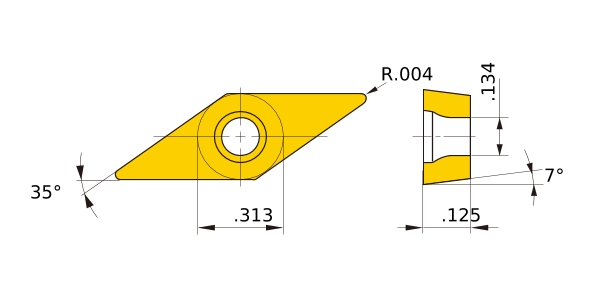

D1 .134
IC .313
EPSR 35°
AN 7°
S .125
RE .004
Breaker LS-P
Classification of Grades
Coated・Carbide MS9025
2D Model (DXF)
