Turning Insert >BTAT7235V5R-SMB
BTAT7235V5R-SMB EDP:10577486
The actual product may differ from the displayed image.

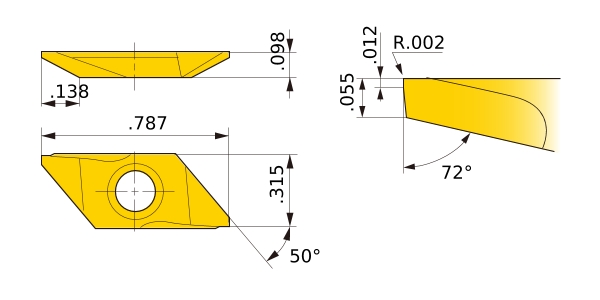

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | BTAT7235V5R-SMB |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | I |
| EPSR | 50° |
| PSIRR | 72° |
| LE | .138 |
| L | .787 |
| W1 | .315 |
| CW | .055 |
| S | .098 |
| CF | .012 |
| REL | .002 |
| Breaker | SMB |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
