Turning Insert >BTAT603501MR-B
BTAT603501MR-B EDP:10577462
The actual product may differ from the displayed image.

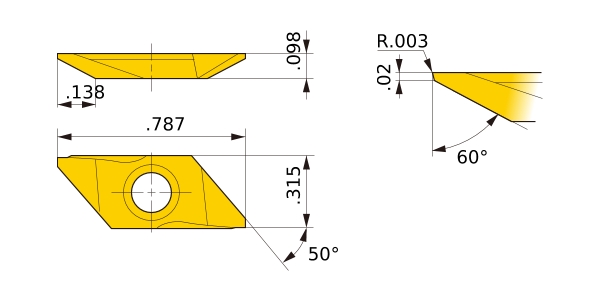

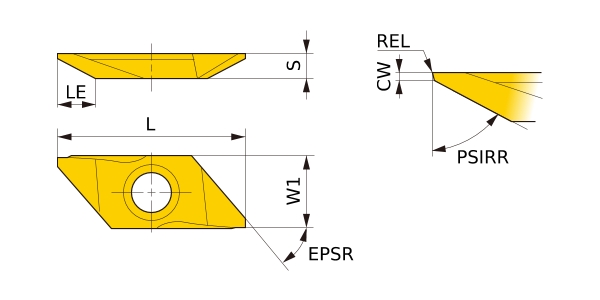

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | MS6015 |
| ANSI | BTAT603501MR-B |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | I |
| EPSR | 50° |
| PSIRR | 60° |
| LE | .138 |
| L | .787 |
| W1 | .315 |
| CW | .02 |
| S | .098 |
| CF | 0 |
| REL | .003 |
| Breaker | B |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
