Turning Insert >BTBT705502MR-SMB
BTBT705502MR-SMB EDP:10577530
The actual product may differ from the displayed image.
For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | BTBT705502MR-SMB |
| Sales unit | 5 |
| Hand | R |
| Stock |
|

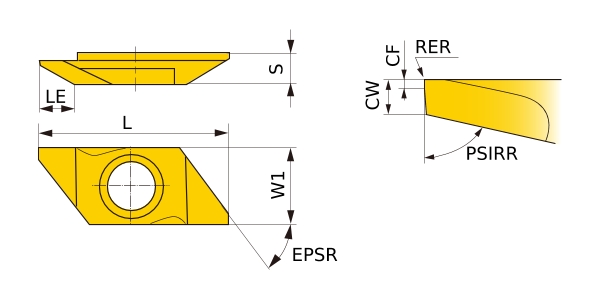

| Unit of Length | I |
| EPSR | 45° |
| PSIRR | 70° |

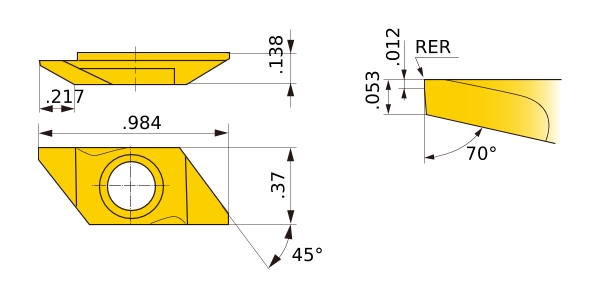

| CDX | .256 |
| LE | .217 |
| L | .984 |
| W1 | .37 |
| CW | .053 |
| S | .138 |
| CF | .012 |
| REL | .007 |
| Breaker | SMB |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
