Turning Insert >CTBT20145V5LR-B
CTBT20145V5LR-B EDP:10577424
The actual product may differ from the displayed image.

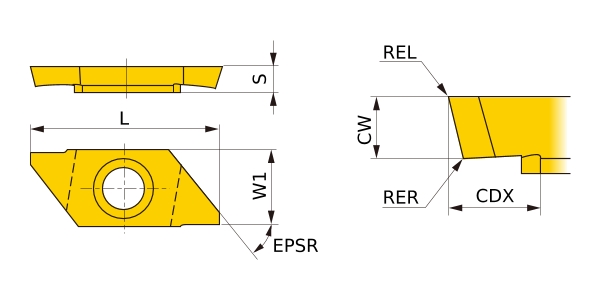

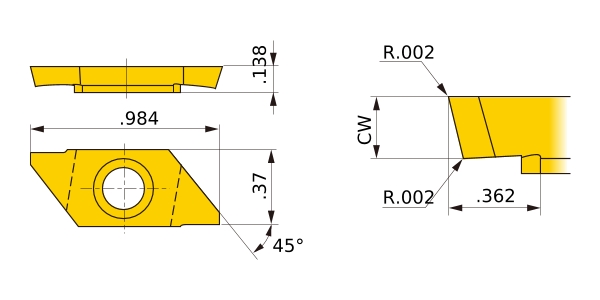

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | MS6015 |
| ANSI | CTBT20145V5LR-B |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | I |
| CUTDIA | .571 |
| B9 | 16° |
| EPSR | 45° |
| CDX | .362 |
| LE | .177 |
| L | .984 |
| W1 | .37 |
| CW | .079 |
| S | .138 |
| REL | .002 |
| RER | .002 |
| Breaker | B |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | VP15TF |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
