Turning Insert >NP-WNGA432-SE3

Turning Insert

NP-WNGA432-SE3 EDP:10595534

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade CBN
Grade MB4120
Order Number NP-WNGA080408SE3
Sales unit 1
Hand N
Stock
Unit of Length I

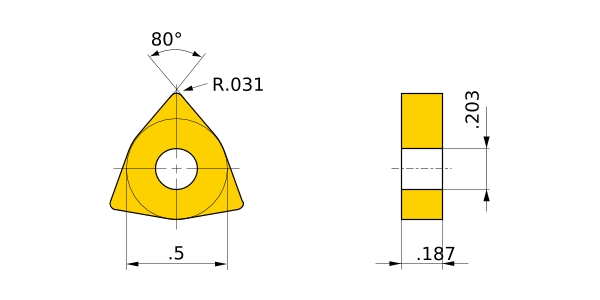

D1 .203
IC .5
EPSR 80°
LE .079
S .187
RE .031
Breaker flat_top
