Turning Insert >NP-TPGB1.81.51-FS3

Turning Insert

NP-TPGB1.81.51-FS3 EDP:10595121

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade CBN
Grade MB4120
Order Number NP-TPGB090204FS3
Sales unit 1
Hand N
Stock
Unit of Length I

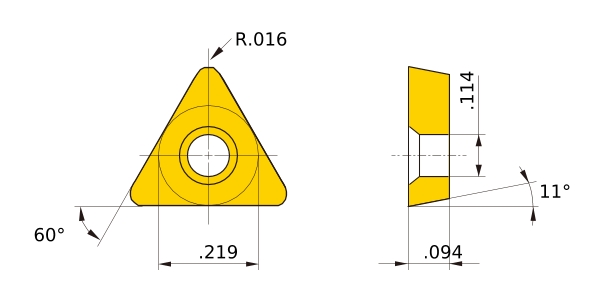

D1 .114
IC .219
EPSR 60°
AN 11°
LE .063
S .094
RE .016
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC5110
