Turning Insert >TNGG330.5LFS

Turning Insert

TNGG330.5LFS EDP:10593554

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
Order Number TNGG160402L-FS
Sales unit 10
Hand L
Stock
Unit of Length I

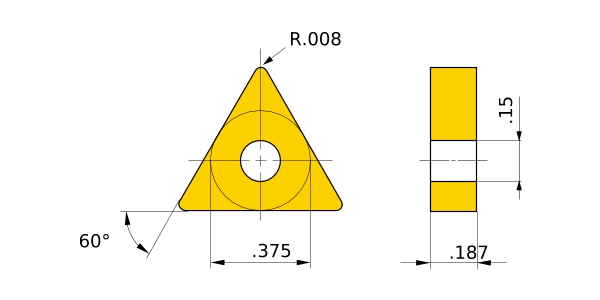

D1 .15
IC .375
B7 30
EPSR 60°
GAN 15°
LBB .051
LE .106
S .187
RE .008
Breaker L-FS
Classification of Grades
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
TN160402L
