Turning Insert >CCGT03S104MR-F

Turning Insert

CCGT03S104MR-F EDP:10592854

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
ANSI CCGT03S104MR-F
Sales unit 10
Hand R
Stock
Unit of Length I

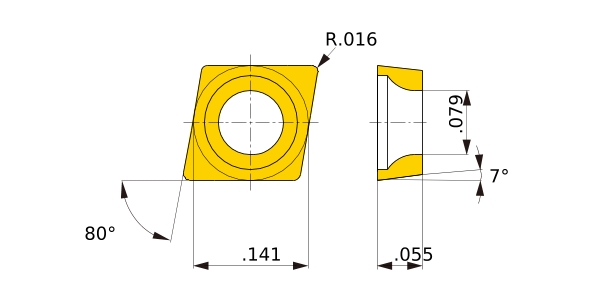

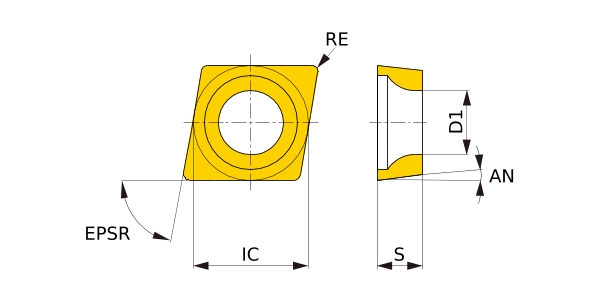

D1 .079
IC .141
EPSR 80°
GAN 17°
AN 7°
LBB .031
LE .063
S .055
RE .016
Breaker R-F
2D Model (DXF)
CAD data name Download
CCGT03S104R-F
CAD
