Turning Insert >CCGT04T002MR-F

Turning Insert

CCGT04T002MR-F EDP:10592908

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
ANSI CCGT04T002MR-F
Sales unit 10
Hand R
Stock
Unit of Length M

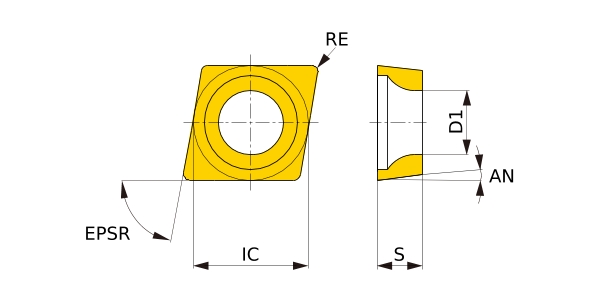

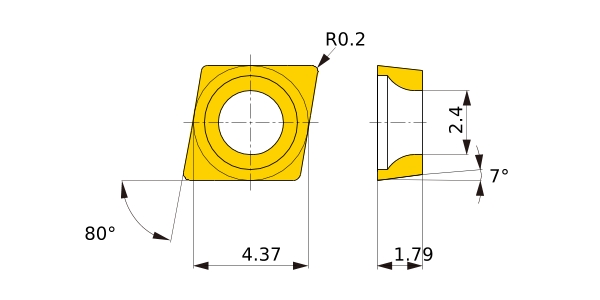

D1 2.4
IC 4.37
EPSR 80°
GAN 17°
AN 7°
LBB 1
LE 1.8
S 1.79
RE 0.2
Breaker R-F
