Turning Insert >CCGT04T002ML-F

Turning Insert

CCGT04T002ML-F EDP:10592878

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
ANSI CCGT04T002ML-F
Sales unit 10
Hand L
Stock
Unit of Length I

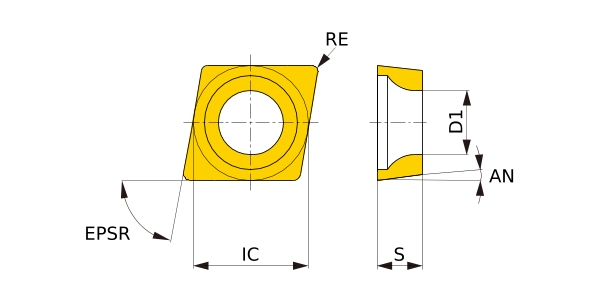

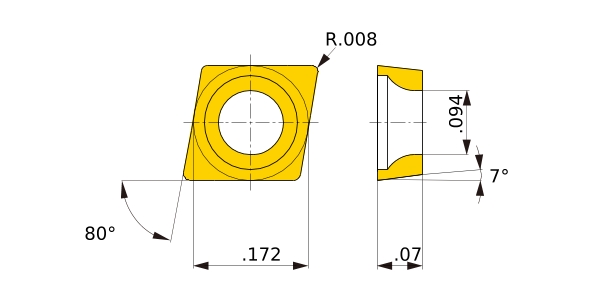

D1 .094
IC .172
EPSR 80°
GAN 17°
AN 7°
LBB .039
LE .071
S .07
RE .008
Breaker L-F
2D Model (DXF)
CAD data name Download
CCGT04T002L-F
CAD
