Turning Insert >TCGT1.210.5MRF

Turning Insert

TCGT1.210.5MRF EDP:10593004

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
Order Number TCGT060102MR-F
Sales unit 10
Hand R
Stock
Unit of Length I

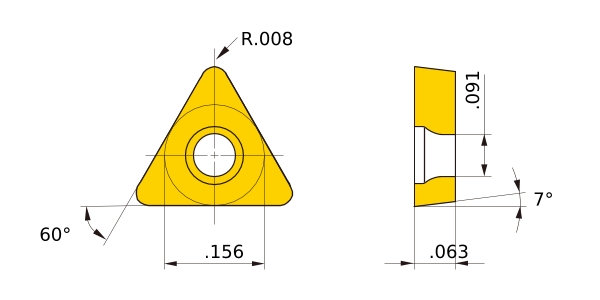

D1 .091
IC .156
B7 20°
EPSR 60°
GAN 14°
AN 7°
LBB .039
LE .118
S .063
RE .008
Breaker R-F
