Turning Insert >NP-CCGW03S102FS

Turning Insert

NP-CCGW03S102FS EDP:10598047

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade CBN
Grade MB8110
ANSI NP-CCGW03S102FS
Sales unit 1
Hand N
Stock
Unit of Length I

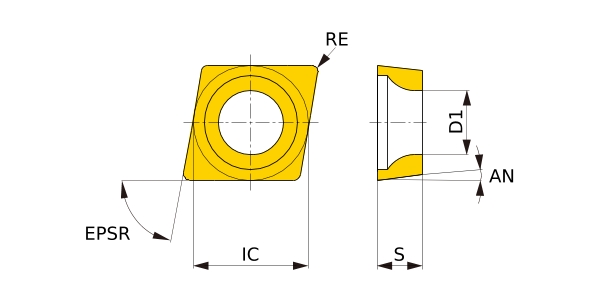

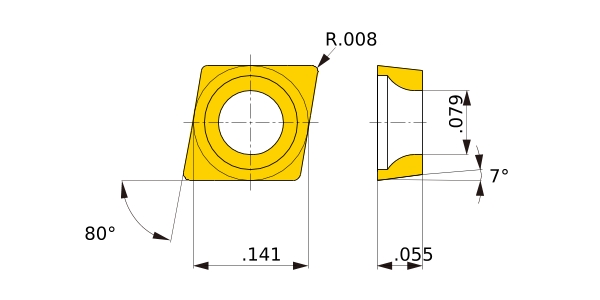

D1 .079
IC .141
EPSR 80°
AN 7°
LE .043
S .055
RE .008
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8110
CBN・Coated CBN BC8210
CBN・CBN MB8210
2D Model (DXF)
CAD data name Download
CCGW03S102N
CAD
