Turning Insert >NP-TPGB220.5-GA3

Turning Insert

NP-TPGB220.5-GA3 EDP:10599662

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade CBN
Grade MB8120
Order Number NP-TPGB110302GA3
Sales unit 1
Hand N
Stock
Unit of Length I

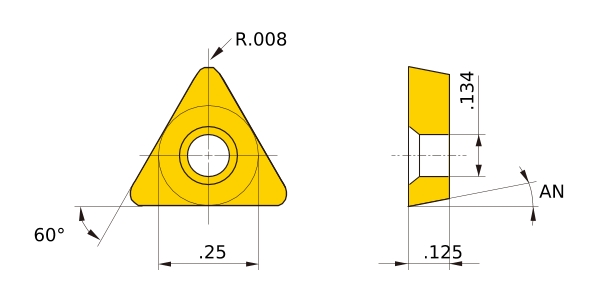

D1 .134
IC .25
EPSR 60°
LE .059
S .125
RE .008
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8120
CBN・Coated CBN BC8220
2D Model (DXF)
CAD data name Download
TP110302N
CAD
