Turning Insert >NP-VNGA160408FS2

Turning Insert

NP-VNGA160408FS2 EDP:10617458

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC5110
ANSI NP-VNGA332-FS2
Sales unit 1
Hand N
Stock
Unit of Length M

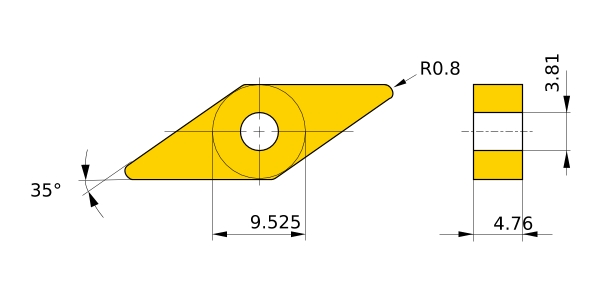

D1 3.81
IC 9.525
EPSR 35°
LE 2
S 4.76
RE 0.8
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8105
CBN・Coated CBN BC8110
CBN・Coated CBN BC8120
CBN・Coated CBN BC8210
CBN・CBN MB8110
CBN・CBN MB8210
CBN・CBN MB4120
2D Model (DXF)
CAD data name Download
VN160408N
CAD
