Turning Insert >GW1M0239E020N-GM

Turning Insert

GW1M0239E020N-GM EDP:10631102

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP30RT
ANSI GW1M0239E020N-GM
Sales unit 10
Hand N
Stock
Unit of Length M

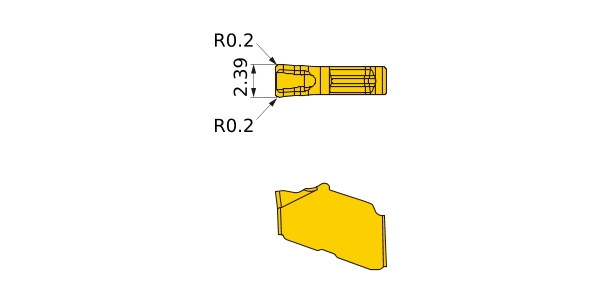

CW 2.39
REL 0.2
RER 0.2
Breaker GM
Classification of Grades
Coated・Carbide VP10RT
Coated・Carbide VP20RT
Coated・Carbide MY5015
2D Model (DXF)
CAD data name Download
GW1M0239E020N-GM
CAD
