Turning Insert >NP-DNGA443-FS2

Turning Insert

NP-DNGA443-FS2 EDP:10645420

Product Information

The actual product may differ from the displayed image.

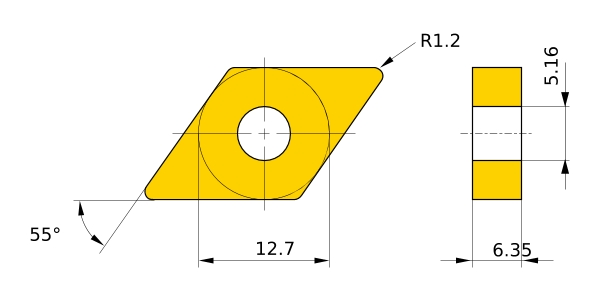

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Coated CBN
Grade BC8210
Order Number NP-DNGA150612FS2
Sales unit 1
Hand N
Stock
Unit of Length I
D1 .203
IC .5
EPSR 55°
LE .071
S .25
RE .047
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8105
CBN・Coated CBN BC8110
CBN・Coated CBN BC8120
CBN・CBN MB8110
CBN・CBN MB4120
3D Detail Model (STP,STL)
CAD data name Download
DN150612N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
