Turning Insert >GY2G0200D003R15-GS

Turning Insert

GY2G0200D003R15-GS EDP:22824196

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP20RT
ANSI GY2G0200D003R15-GS
Sales unit 10
Hand N
Stock
Unit of Length M

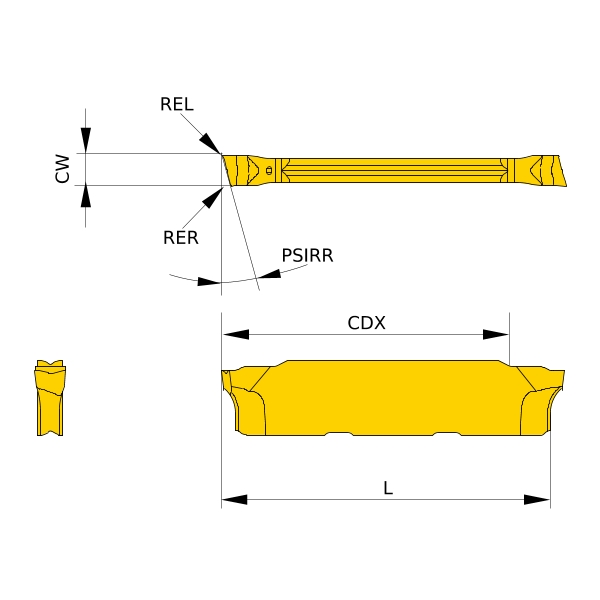

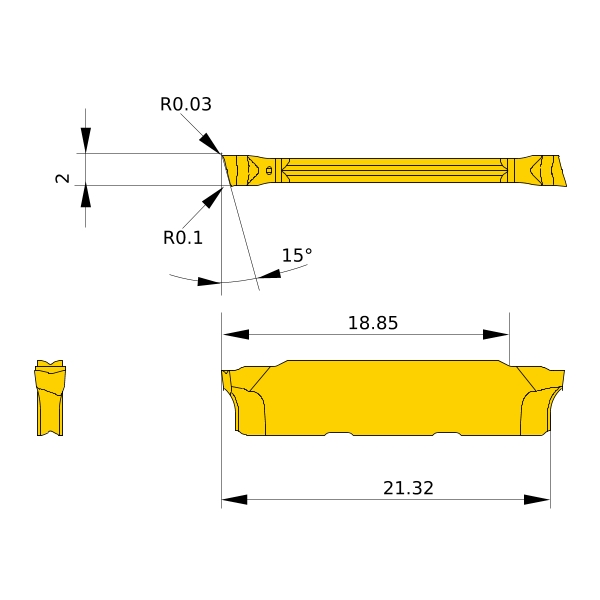

PSIRR 15°
CDX 18.85
L 21.32
CW 2
REL 0.03
RER 0.1
Breaker R-GS
Tolerance CW:±0.03 REL:+0.03 -0.02 L:±0.1
