Turning Insert >GY2G0300F020R15-GS

Turning Insert

GY2G0300F020R15-GS EDP:22824271

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP20RT
ANSI GY2G0300F020R15-GS
Sales unit 10
Hand N
Stock
Unit of Length I

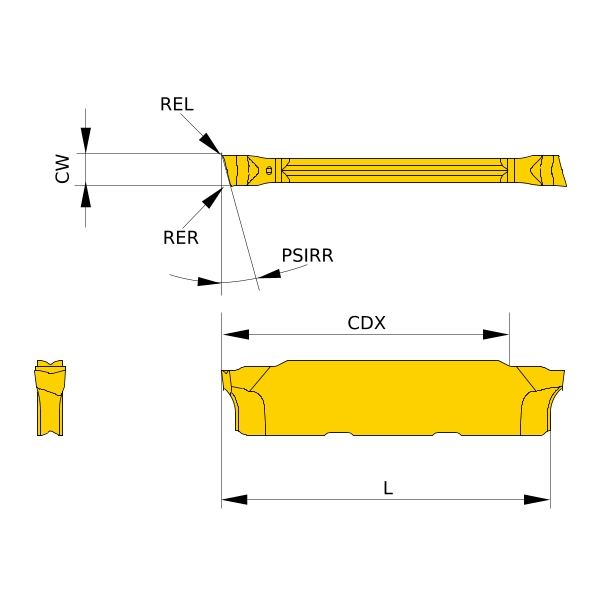

PSIRR 15°

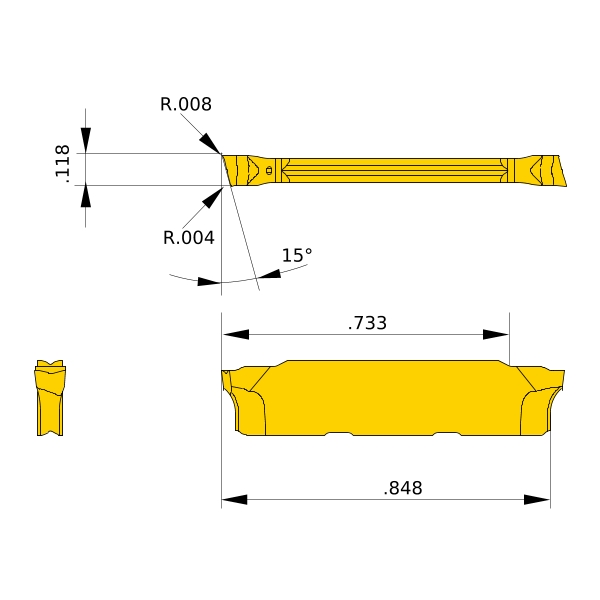

CDX .733
L .848
CW .118
REL .008
RER .004
Breaker R-GS
Tolerance CW:±0.03 REL:±0.05 L:±0.1
Classification of Grades
Coated・Carbide VP10RT
2D Model (DXF)
CAD data name Download
GY2G0300F020R15-GS
CAD
