Mandrinado >M-FSDQC_INCH >M-FSDQCL-102-C

Mandrinado

M-FSDQC_INCH
（Dimple Bar）

M-FSDQCL-102-C EDP:307395

Información sobre productos

  • Excelente resistencia a la vibración debido a su cabeza dimple ligera.
  • Optimización de la evacuación de las virutas gracias a dos canales especiales.
  • l/d es de 3 a 6 veces el diámetro.
  • El diámetro mínimo de corte es de 390 pulgadas.
  • Placa positiva, 5°, 11°.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX10S-SDQCL2
N.º de unidades de pedido 1
Mano L
Existencia
Unidad de longitud I

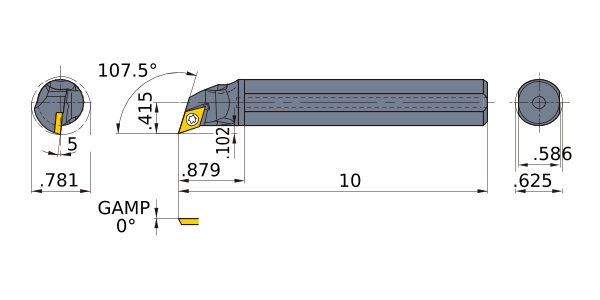

DMIN .781
DCON .625
KAPR 107.5°
LF 10
LDRED .879
WF .415
H .586
WF2 .102
GAMF 5
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insertar número DC__21.5
Modelo 2D (DXF)
Nombre datos CAD Descargar
M-FSDQCL-102-C
CAD
