Mandrinado >M-FSVPC_INCH >M-FSVPCR-061.5-C

Mandrinado

M-FSVPC_INCH
（Dimple Bar）

M-FSVPCR-061.5-C EDP:307643

Información sobre productos

  • Placa positiva, 5°, 11°.
  • Excelente resistencia a la vibración debido a su cabeza dimple ligera.
  • Optimización de la evacuación de las virutas gracias a dos canales especiales.
  • El diámetro mínimo de corte es de 390 pulgadas.
  • l/d es de 3 a 6 veces el diámetro.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX06M-SVPCR1.5
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I

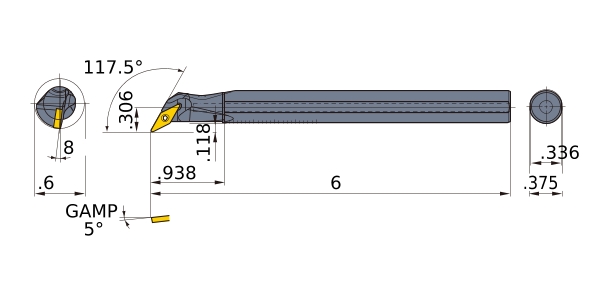

DMIN .6
DCON .375
KAPR 117.5°
LF 6
LDRED .938
WF .306
H .336
WF2 .118
GAMF 8
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insertar número VC__1.51.5
Modelo 2D (DXF)
Nombre datos CAD Descargar
M-FSVPCR-061_5-C
