Brocas >DVAS-MINI_INCH >DVAS0102X50S040

Brocas

DVAS-MINI_INCH
（TRISTAR）

DVAS0102X50S040 EDP:23795570

Información sobre productos

  • Diámetro pequeño
  • La tecnología TRI-Cooling es óptima para brocas de diámetro pequeño y puede alcanzar más del doble del volumen de descarga de refrigerante convencional.
  • Un mayor flujo de refrigerante proporciona un enfriamiento eficaz incluso en aplicaciones difíciles o cuando se utiliza un fluido de corte a base de aceite.

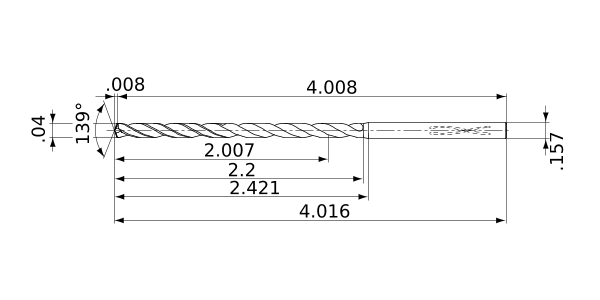

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad DP1120
N.º de unidades de pedido 1
Existencia
Unidad de longitud I
DC .04
DCONMS .157
SIG 139°
LF 4.008
OAL 4.016
LH 2.421
LU 2.007
LCF 2.2
ld 50
PL .008
Effective Cutting Edge 2
Tolerancia máx. de diámetro de filo de corte 0
Tolerancia mín. de diámetro de filo de corte -.0003
Tipo de refrigerante Interior
Modelo 2D (DXF)
Nombre datos CAD Descargar
DVAS0102X50S040
CAD
