Brocas >DVAS-PILOT_INCH >DVAS0178X02S040

Brocas

DVAS-PILOT_INCH
（TRISTAR）

DVAS0178X02S040 EDP:23791039

Información sobre productos

  • Diámetro pequeño
  • La tecnología TRI-Cooling es óptima para brocas de diámetro pequeño y puede alcanzar más del doble del volumen de descarga de refrigerante convencional.
  • Un mayor flujo de refrigerante proporciona un enfriamiento eficaz incluso en aplicaciones difíciles o cuando se utiliza un fluido de corte a base de aceite.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad DP1120
N.º de unidades de pedido 1
Existencia
Unidad de longitud I

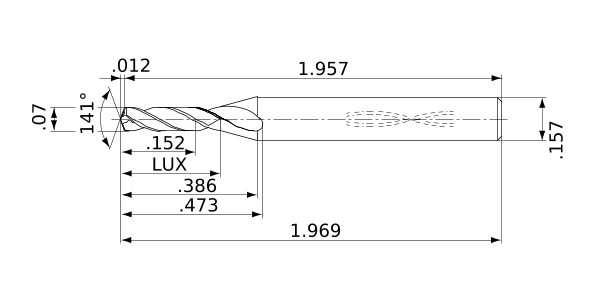

DC .07
DCONMS .157
SIG 141°
LF 1.957
OAL 1.969
LH .386
LU .152
LCF .473
ld 2
PL .012
Effective Cutting Edge 2
Tolerancia máx. de diámetro de filo de corte .0002
Tolerancia mín. de diámetro de filo de corte -.0001
Tipo de refrigerante Interior
