Fresas(Con placa intercambiable)

LER_INCH


LER3218W32 EDP:102654

Información sobre productos

  • Los ángulos de hélice helicoidales variables impiden la vibración.
  • Apto para corte pesado gracias a la rigidez del portaherramientas.

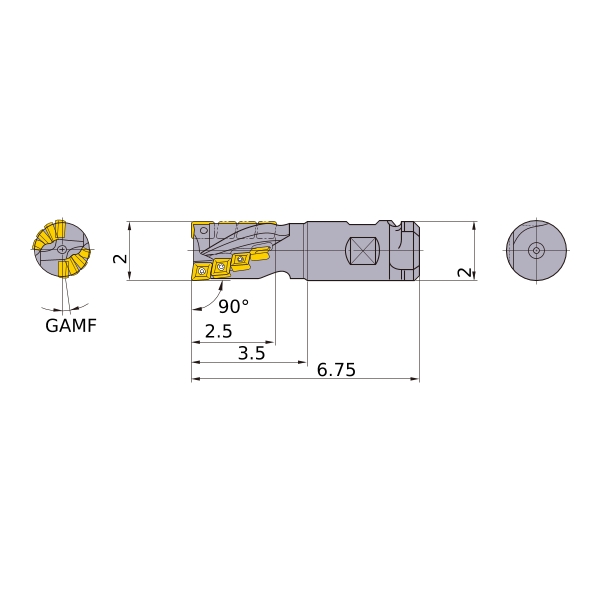

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
DC 2
DCON 2
KAPR 90°
LF 6.75
LH 3.5
APMX 2.5
Cutting item count: CICT 18
Peripheral effective cutting edge count: ZEFP 3
