Fresas(Con placa intercambiable)

WSX445_INCH
（MECANIZADO GENERAL）

WSX445UR4005FA20M EDP:10521298

Información sobre productos

  • Geometría en doble Z
  • Evacuación fluida de virutas.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I

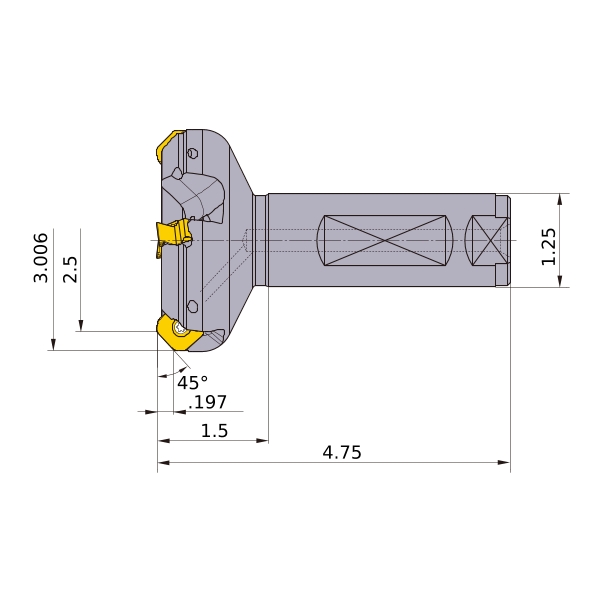

DC 2.5
DCX 3.006
DCON 1.25
KAPR 45°
LF 4.75
LH 1.5
APMX .197
GAMP -6°
GAMF -10°
WT 2.381
Cutting item count: CICT 5
Peripheral effective cutting edge count: ZEFP 5
Modelo 2D (DXF)
Nombre datos CAD Descargar
WSX445UR4005FA20M
CAD
